Sapphire Inclusions
Explore sapphire inclusions in Hyperion, the Lotus Gemology inclusion database. Hyperion contains photomicrographs of inclusions and internal features in natural sapphire, documented with information on geographic origin, treatment, lighting conditions, field of view, photographer and published references.
Heat-altered “snowball” like crystals in a heat-treated sapphire from Sri Lanka.
Natural Sapphire •
Sri Lanka (Ceylon) •
Enhancements:
Heat (H) •
Lighting Conditions:
Dark Field
Photographer:
Richard W. Hughes •
Image Number:
A-001-0728-1

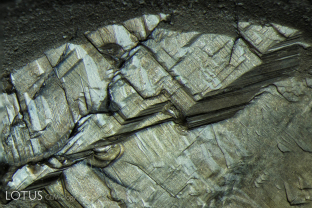

Basal parting on the back of a black star sapphire from Chanthaburi, Thailand. Exsolution of iron-rich inclusions in the basal plane produce mechanical weakness.
Natural Black Star Sapphire •
Thailand/Cambodia •
Enhancements:
None Detected (None) •
Lighting Conditions:
Fiber Optic: Diffuse Overhead
Photographer:
Richard W. Hughes •
Image Number:
A-001-0659-1
Heat-altered fingerprints in a heat-treated Ceylon sapphire. Close examination reveals microscopic fractures around each negative crystal, due to the heat treatment.
Natural Sapphire •
Sri Lanka (Ceylon) •
Enhancements:
Heat (H) •
Lighting Conditions:
Fiber Optic: Oblique
Photographer:
Richard W. Hughes •
Image Number:
A-001-0638-1
Rutile consists of titanium dioxide. When a sapphire containing exsolved rutile silk is heated, the rutile melts, sending the titanium back into solution, coloring the stone blue around the now partially dissolved silk. This creates a classic “inkspot” internal diffusion pattern, and is proof of high-temperature heat treatment.
Natural Sapphire •
Sri Lanka (Ceylon) •
Enhancements:
Heat (H) •
Lighting Conditions:
Fiber Optic: Transmitted
Photographer:
Richard W. Hughes •
Image Number:
A-001-0575-1
Koivula, J.I. (1987) Internal diffusion. Journal of Gemmology, Vol. 20, No. 7/8, pp. 474–477; RWHL*.
Internal diffusion in heat-treated Ceylon sapphire. This is caused by the bleeding of titanium into the surrounding sapphire from titanium-bearing inclusions such as rutile during high-temperature heat treatment.
Natural Sapphire •
Sri Lanka (Ceylon) •
Enhancements:
Heat (H) •
Lighting Conditions:
Fiber Optic: Oblique
Photographer:
Wimon Manorotkul •
Image Number:
A-001-0301-1
Koivula, J.I. (1987) Internal diffusion. Journal of Gemmology, Vol. 20, No. 7/8, pp. 474–477; RWHL*.

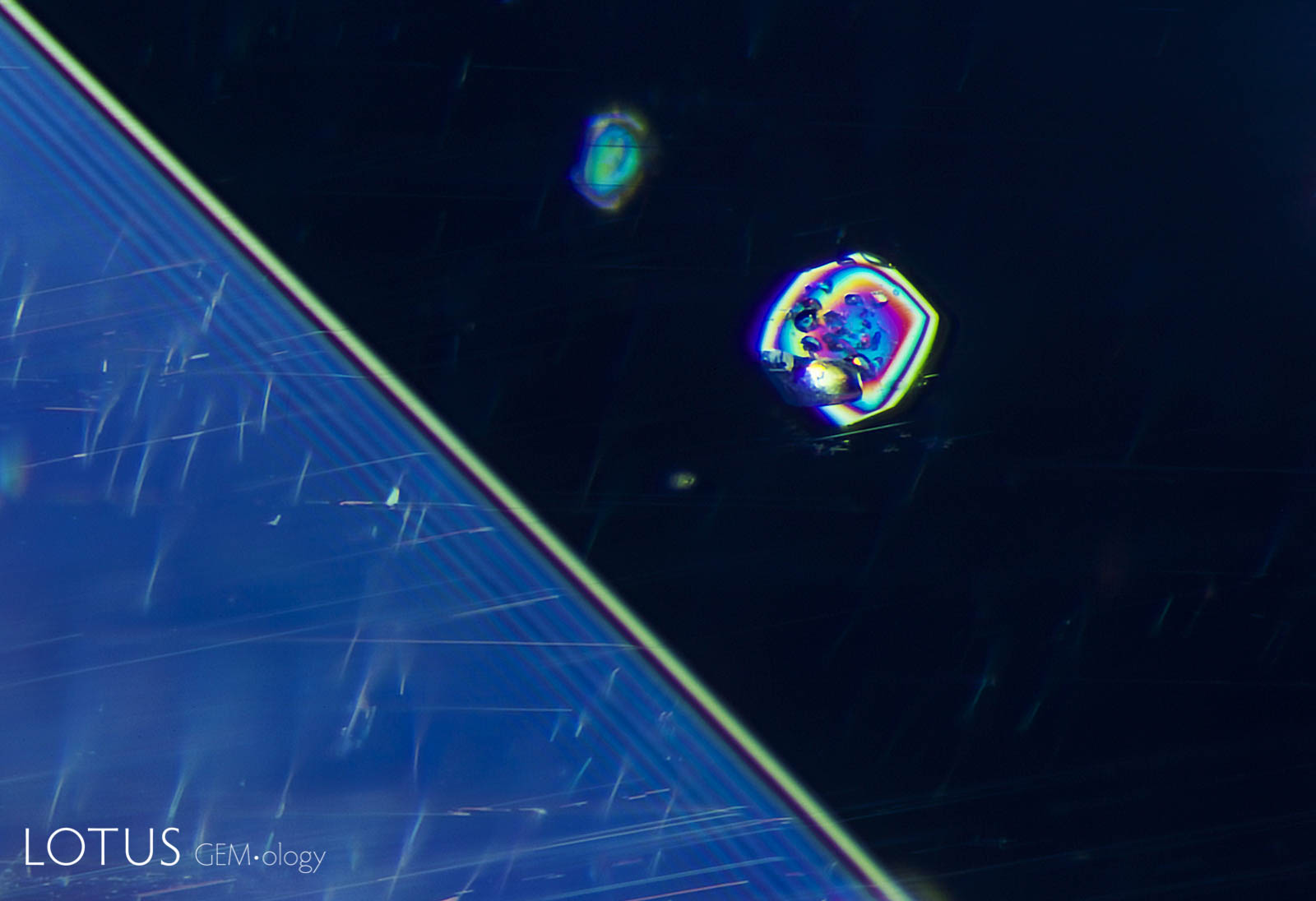

Otherworldly birefringent crystals float above a twin plane in a sapphire from Sri Lanka.
Natural Star Sapphire •
Sri Lanka (Ceylon) •
Enhancements:
None Detected (None) •
Lighting Conditions:
Diffuse Light Field + Crossed Polars
Photographer:
E. Billie Hughes •
Image Number:
A-001-1698-1
This sapphire crystal from Burma’s Mogok Stone Tract featured extremely large negative crystals with mobile carbon dioxide bubbles. These inclusions would rupture if heated, and so are proof of natural, untreated origin.
Natural Sapphire •
Myanmar (Burma); Mogok •
Enhancements:
None Detected (None) •
Lighting Conditions:
Light Field + Oblique Fiber Optic
Photographer:
E. Billie Hughes •
Image Number:
A-001-1484-4
This sapphire crystal from Burma’s Mogok Stone Tract featured extremely large negative crystals with mobile carbon dioxide bubbles. These inclusions would rupture if heated, and so are proof of natural, untreated origin.
Natural Sapphire •
Myanmar (Burma); Mogok •
Enhancements:
None Detected (None) •
Lighting Conditions:
Light Field + Oblique Fiber Optic
Photographer:
E. Billie Hughes •
Image Number:
A-001-1484-3
This sapphire crystal from Burma’s Mogok Stone Tract featured extremely large negative crystals with mobile carbon dioxide bubbles. These inclusions would rupture if heated, and so are proof of natural, untreated origin.
Natural Sapphire •
Myanmar (Burma); Mogok •
Enhancements:
None Detected (None) •
Lighting Conditions:
Light Field + Oblique Fiber Optic
Photographer:
E. Billie Hughes •
Image Number:
A-001-1484-2
This sapphire crystal from Burma’s Mogok Stone Tract featured extremely large negative crystals with mobile carbon dioxide bubbles. These inclusions would rupture if heated, and so are proof of natural, untreated origin.
Natural Sapphire •
Myanmar (Burma); Mogok •
Enhancements:
None Detected (None) •
Lighting Conditions:
Diffuse Light Field (Transmitted Light)
Photographer:
E. Billie Hughes •
Image Number:
A-001-1484-1
CO2 bubbles in fingerprint; unheated Nigerian sapphire
Natural Sapphire •
Nigeria •
Enhancements:
None Detected (None) •
Lighting Conditions:
Fiber Optic: Overhead
Photographer:
E. Billie Hughes •
Image Number:
A-001-0561-3
This fingerprint in a Nigerian sapphire shows a network of small channels undamaged by heat treatment.
Natural Sapphire •
Nigeria •
Enhancements:
None Detected (None) •
Lighting Conditions:
Fiber Optic: Oblique
Photographer:
E. Billie Hughes •
Image Number:
A-001-0561-2
Sapphire inclusions may include mineral crystals, rutile silk, healed fissures, fluid inclusions, negative crystals, color zoning and other features formed during or after crystal growth. Such features are important to gemologists because they can provide evidence useful in identifying sapphire, understanding its geological history, recognizing treatment and, in some cases, determining geographic origin.
Sapphire Inclusion Photomicrographs
The Hyperion sapphire gallery includes microscopic features found in sapphires from major deposits around the world. Each entry is accompanied by descriptive information and, where available, references to the gemological literature.
What Inclusions Can Reveal About Sapphire
Inclusions are an important part of sapphire identification. Their form, composition, orientation and alteration can help gemologists distinguish natural sapphire from synthetic material, recognize evidence of heat treatment, and study the geological environment in which the sapphire formed.
Hyperion combines inclusion photomicrography with supporting gemological information so that individual features can be compared with documented examples from known sapphire deposits.
About Hyperion
Hyperion is the Lotus Gemology searchable inclusion database. It allows users to browse gemstone inclusions by gem type, geographic origin, treatment and keyword.
